ANT+ Connectivity

ANT+ is a communication protocol that allows certain wireless devices to transmit information to and from one another. Simply put, it's the "language" that ANT+ devices use to communicate with each other. Many of your favorite cycling and fitness devices use this protocol and TrainerRoad supports these devices with an ANT+ key or dongle.

Check to see if your cycling device supports ANT+ with the official device directory.

Using ANT+ with iOS

To connect your ANT+ devices with the TrainerRoad iOS app you will need a Wahoo-made ANT+ key and an Apple-made 30-Pin to Lightning adapter (depending on your iOS device).



iOS Devices with Lightning
(iPhone 5, 5c, 6 & 6 Plus and iPad Mini, Air & Air 2)

Requires Wahoo ANT+ key and an Apple 30-Pin to Lightning adapter





iOS Devices with 30-Pin
(iPhone 4 & 4s and iPad 2nd Generation)

Requires Wahoo ANT+ key or Wahoo ANT+ Bike Case








Wahoo ANT+ Key
Small adapter to connect your ANT+ devices to your compatible iOS device through the 30-pin connector. The older white models of the Wahoo ANT+ Keys are not supported.

Note: Garmin ANT+ keys are not supported. To our knowledge, this is the most affordable option for the Wahoo ANT+ Key.

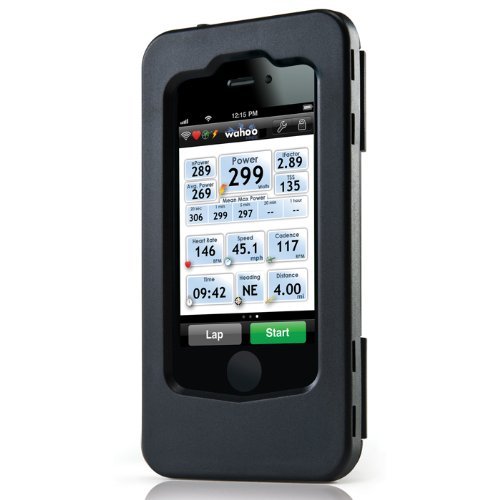

Wahoo ANT+ Bike Case
Allows you to mount your 30-pin iPhone 4S/4 on your bike's handlebars or stem. This will not work with iPhone 5 or newer.

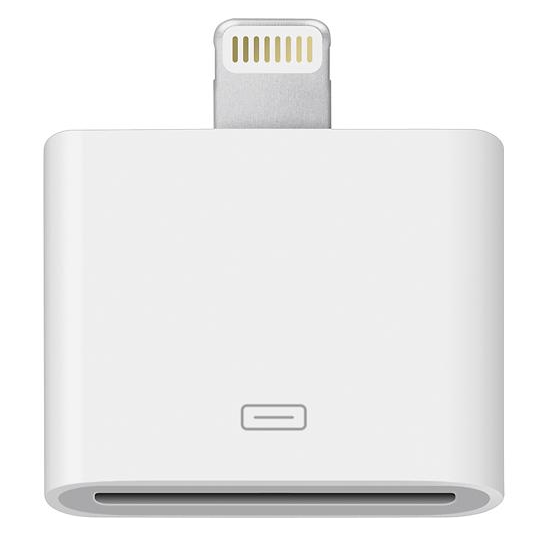

Apple Short Lightning Adapter
Short format Lightning to 30-pin adapter supports analog audio output, USB audio, as well as syncing and charging.

Note: Lightning Adapters not made by Apple are not supported.

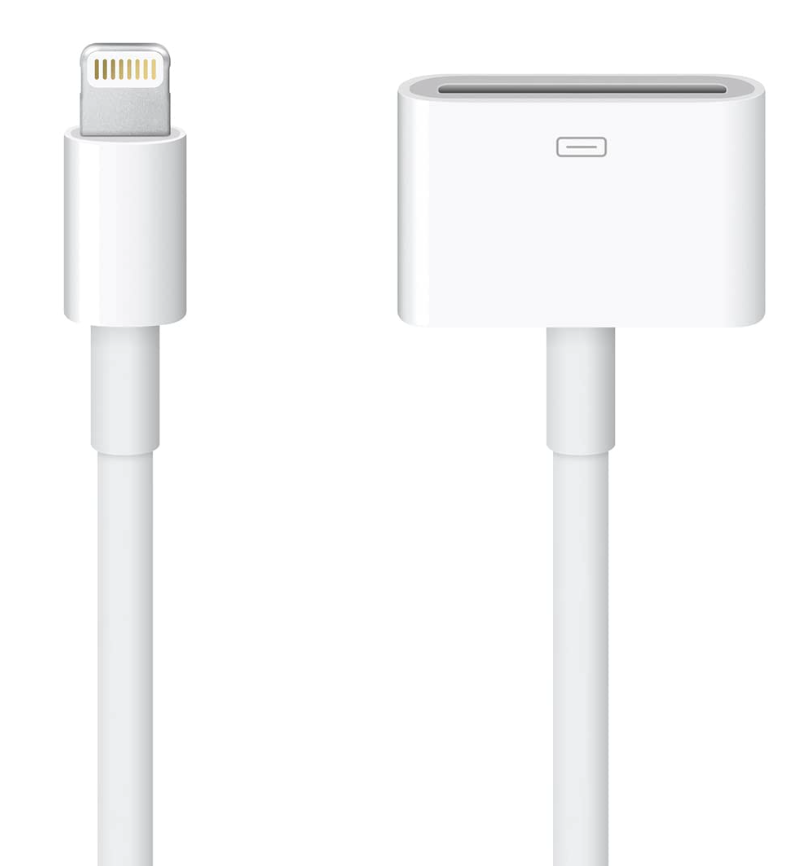

Apple Long Lightning Adapter
This longer adapter lets you connect 30-pin devices that need more room to plug in.

Note: Lightning Adapters not made by Apple are not supported.




Using ANT+ with Android

Does My Android Device Work with ANT+?

To find out more about your specific device's ANT+ compatibility, and more about the ANT+ communication protocol, check out ANT+'s page, ANT+ In Phones and Tablets.

Note: This is not a complete list of Android devices that support ANT+. If your device is NOT listed, it doesn't necessarily mean it does not support ANT+. If you have further questions as to whether your device will work with ANT+, please contact our Support Team.

Note: Given the various ways phone manufacturers implement ANT+, some devices may have stronger ANT+ signals than others. If you’re having difficulty using a native ANT+ device, you may need an adapter to train normally.

Some Android devices are ANT+ compatible on their own, but you may need to install something called "ANT plugins" before you're ready to ride.

ANT Plugins Required for Devices with Built-In ANT+:

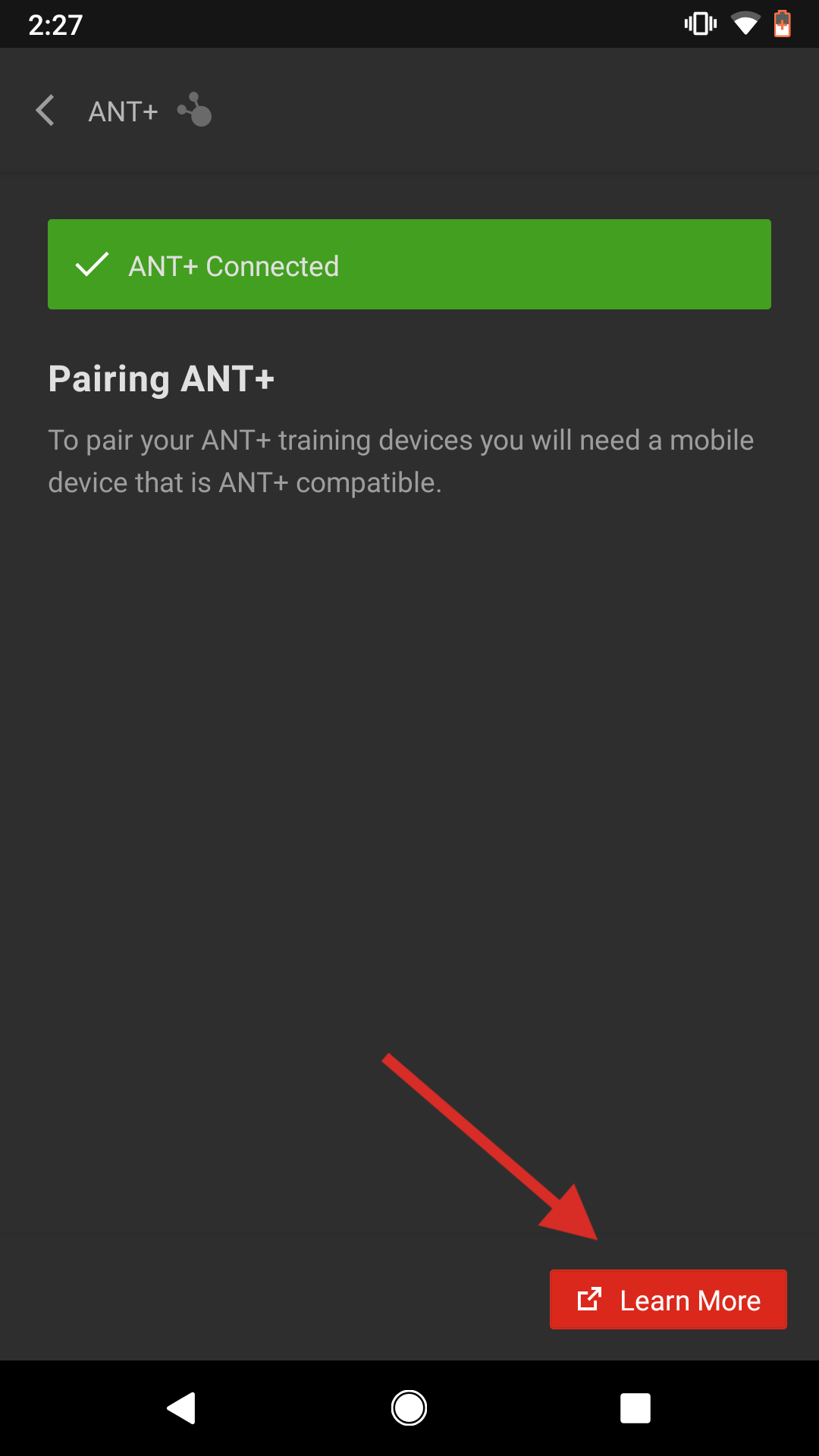

Users can install these plugins directly through the TrainerRoad application by tapping the question mark and following the prompts for download.


Other devices may require an ANT+ dongle. Fortunately, some of these devices work with existing ANT+ USB dongles from your computer and an additional USB-C or phone-specific USB adapter.

ANT Plugins Required for Devices without Built-In ANT+ (Requires ANT+USB Stick):

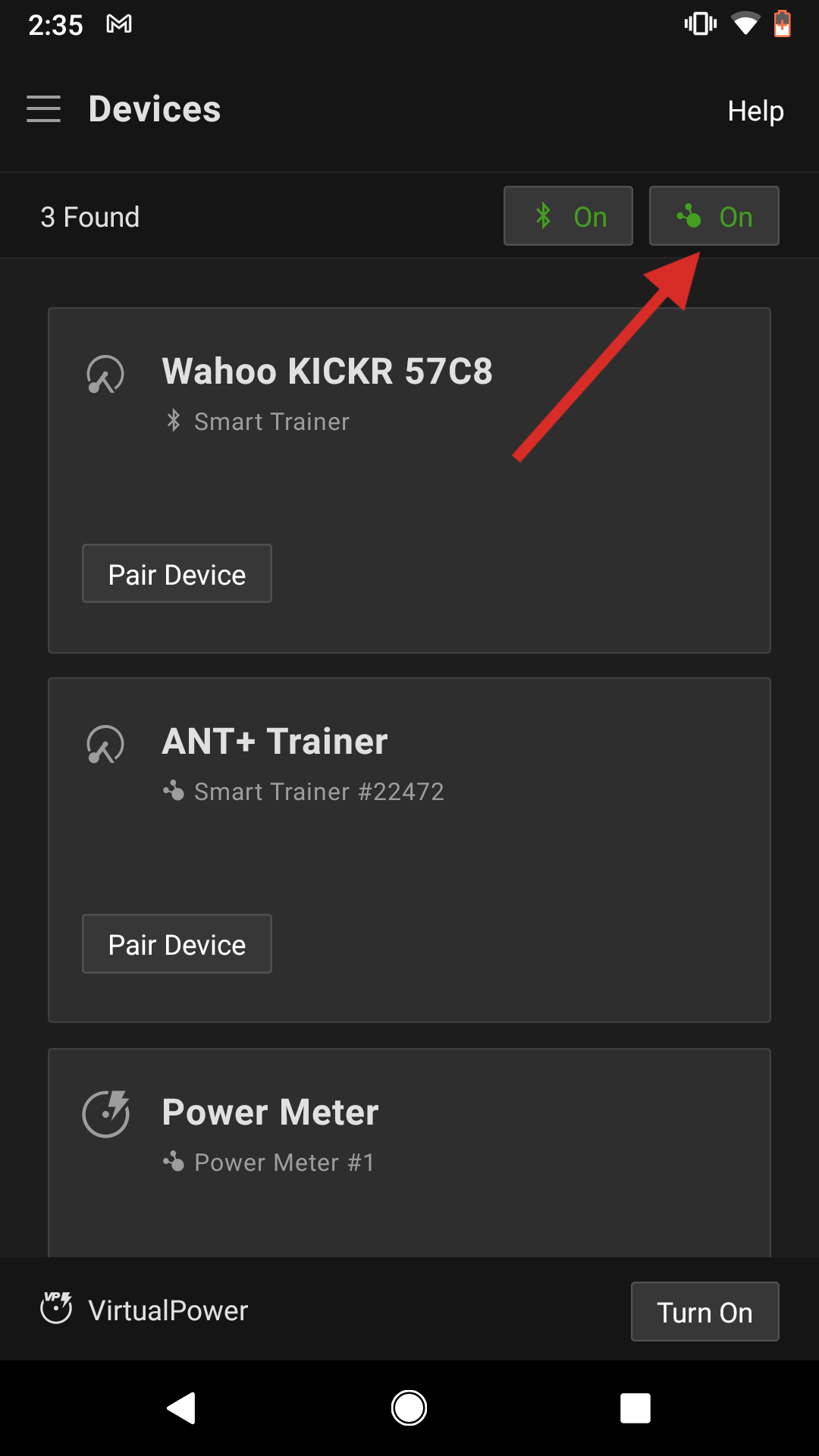

Users can install these plugins directly through the TrainerRoad application by tapping the question mark and following the prompts for download.




If your Android device does not have built-in ANT+:

You will need an adapter (USBc-to-USB OR Micro USB-to-USB) that will allow you to plug your ANT+ USB dongle into your Android phone or tablet.

TrainerRoad Recommends:

USBc-to-USB Adapter

Micro USB-to-USB Adapter

Make sure you check to see if your Android devices uses a USBc or Micro USB port before purchasing one of the above adapters.


In addition to the USB adapter, you will need the actual ANT+ USB stick that will turn your Android device into an ANT+-receivable unit.

TrainerRoad Recommends:

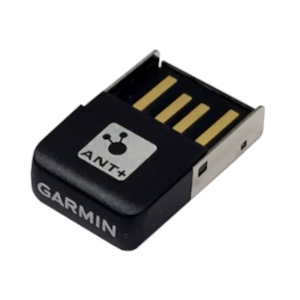

Mini Garmin ANT+ Stick
A great ANT+ USB stick option — and it's small enough to stay plugged in when you aren't training.

Suunto Movestick Mini
The Suunto Movestick Mini is another great option that's also small enough to stay plugged in.





Live in Australia?
Aussie users will need to pick up an ANT+ stick from an Australian vendor or a local bike shop instead of the Amazon links above.




Problems Connecting Your Devices?

Visit our troubleshooting article for help getting your devices connected so you can start training!



Using ANT+ with Desktop

To connect your ANT+ devices with the TrainerRoad Desktop app you will need an ANT+ dongle.





USB1 and USB2
There are two kinds of ANT+ USB dongles to choose from: USB 1.0 and USB 2.0. USB 1.0 can connect up to 4 devices at a time, while USB 2.0 can handle up to 8. Most newer dongles will be 2.0 since 1.0 is no longer in production.

USB 1.0 dongles will only work with the Legacy (Adobe AIR) application. You will need still a USB 2.0 dongle if you're going to use Wahoo KICKR with the Legacy app. If you are unsure which you have, check the info on the back of the stick.

Please note, you will need a USB 2.0 dongle in order to use any ANT+ device on the new Windows, Android, or Mac applications.

Check out this article for more information on the difference between USB1 and USB2 sticks.


TrainerRoad Recommends:



Mini Garmin ANT+ Stick
A great ANT+ USB stick option — and it's small enough to stay plugged in when you aren't training.

Suunto Movestick Mini
The Suunto Movestick Mini is another great option that's also small enough to stay plugged in.

Docooler ANT+ Stick
A good, more affordable option for an ANT+ USB dongle.



Live in Australia?
Aussie users will need to pick up an ANT+ stick from an Australian vendor or a local bike shop instead of the Amazon links above.




Problems Connecting Your Devices?

Visit our troubleshooting article for help getting your devices connected so you can start training!
