Stages Power Meter Bluetooth 4.0

How To: Pair Your Stages Power Meter Using Bluetooth 4.0

TrainerRoad will collect and display power data from all models of Stages Cycling power meters using either ANT+ or Bluetooth Smart (4.0). Learn more about ANT+ connectivity. Or, learn more about Bluetooth Smart connectivity.

How Your Stages Measures Power on TrainerRoad

Unlike some power meters, the Stages does not take power measurements from both the left and right legs. Power is only derived from the left side. That power is doubled and displayed as a complete reading.

Keep in mind the single-leg measurement style of this power meter when considering single-leg (ILT) drills. Since power is only derived from the left pedal, riders will not get any readings during right-leg-only intervals. If you're using your Stages to measure cadence, the workout will automatically pause during right-leg-only drills if you have the auto play/pause feature turned on.

How to Pair Your Stages with TrainerRoad

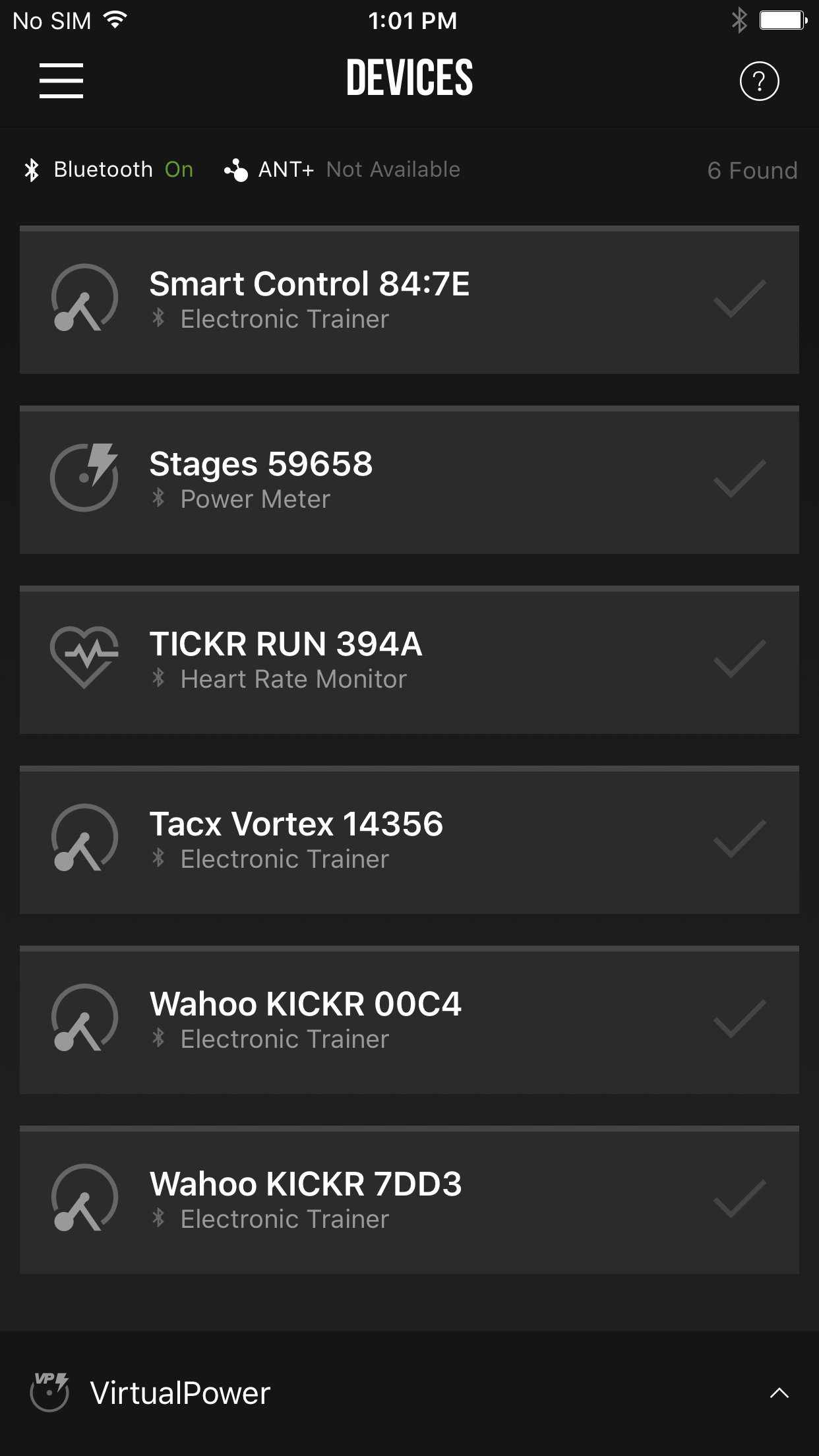

1. Open the TrainerRoad application and go to the Devices tab.


2. Click the "Pair" button that corresponds with Power Meter, and wait for your Stages to pair with TrainerRoad

"Searching for device" will be displayed until TrainerRoad finds your power meter.

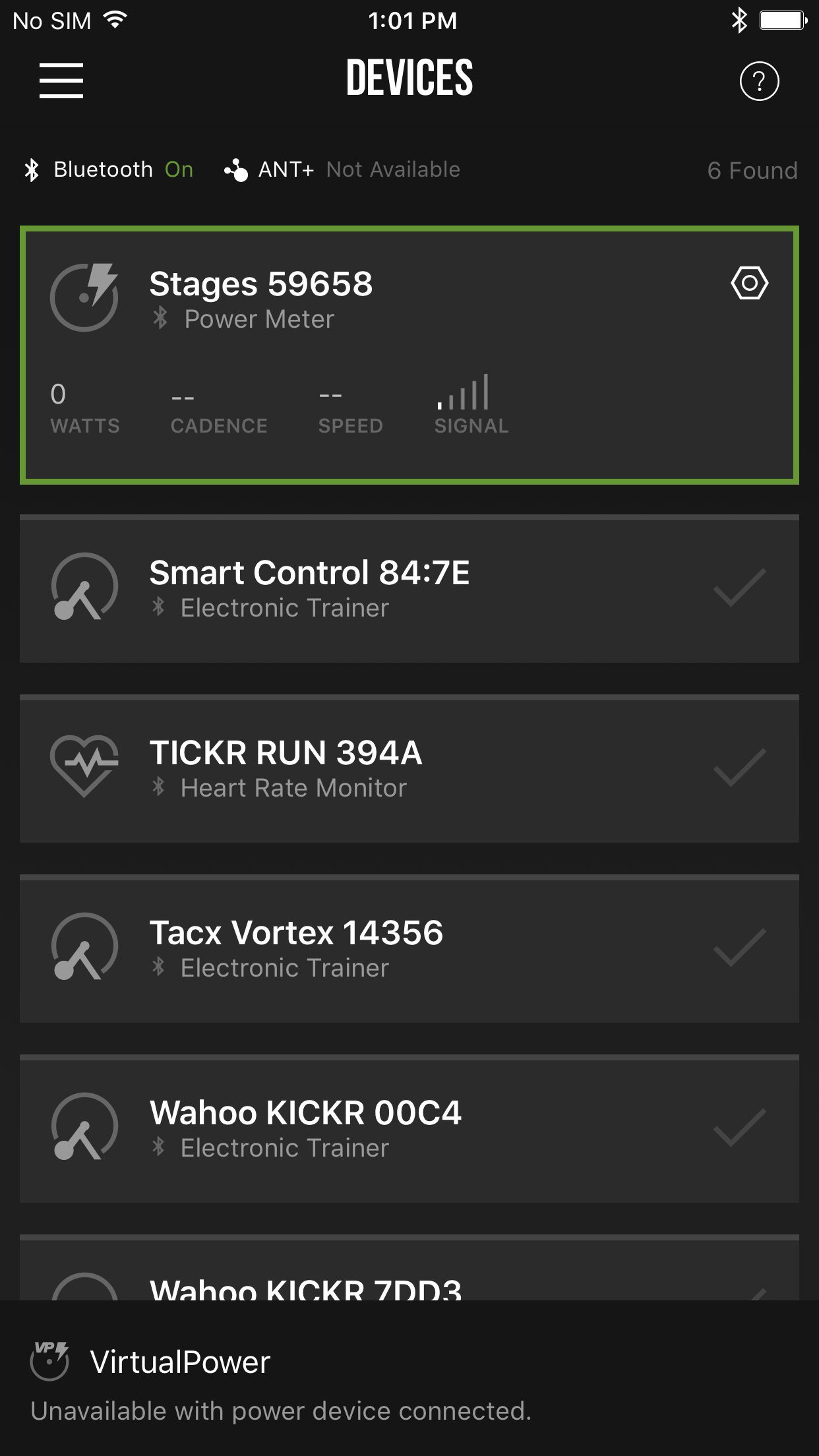

3. Your Stages is Now Paired

The pairing box will turn green once your Stages is paired with TrainerRoad. You'll be able to view power, cadence, the Stages' signal strength, hours since your battery has been replaced, and a button to manually zero your power meter.


How to Pair Your Stages with TrainerRoad (Desktop)

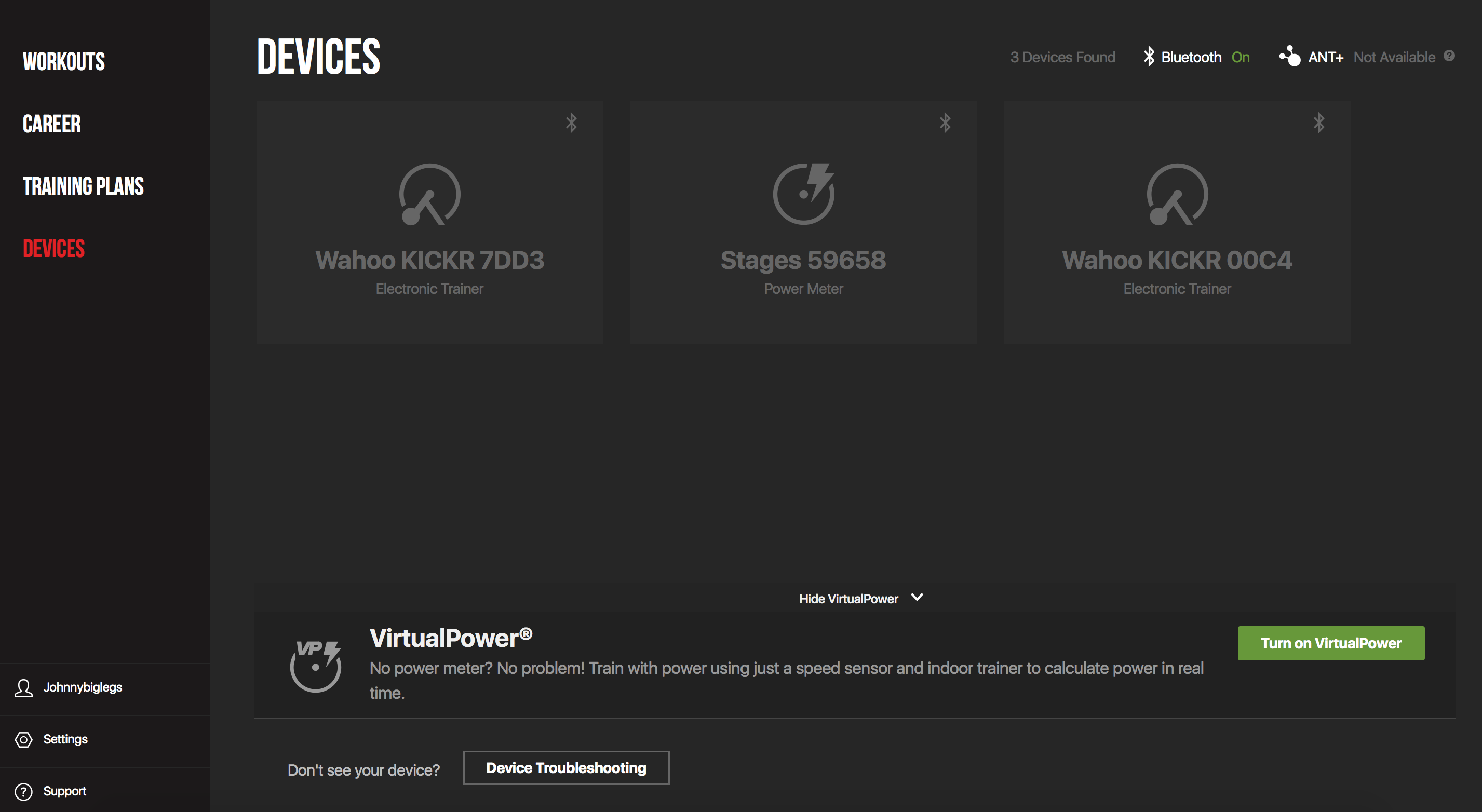

1. Open the TrainerRoad application and go to the Devices tab.


2. Click the "Pair" button that corresponds with Power Meter, and wait for your Stages to pair with TrainerRoad

"Searching for device" will be displayed until TrainerRoad finds your power meter. Once Paired, you'll see the Stages bordered in green.

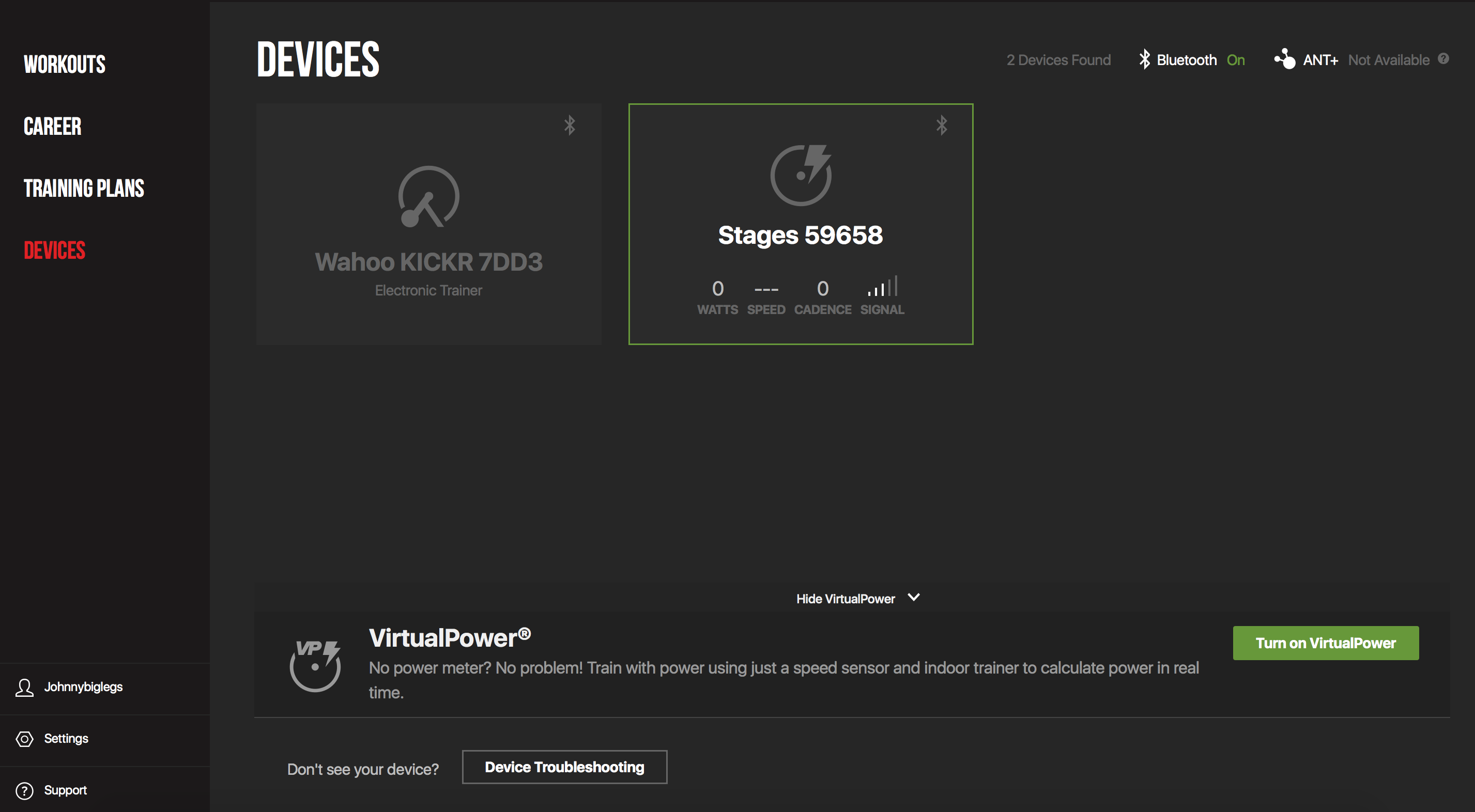

3. Your Stages is Now Paired

You'll be able to view power, cadence, the Stages' signal strength and a button to manually zero your power meter.

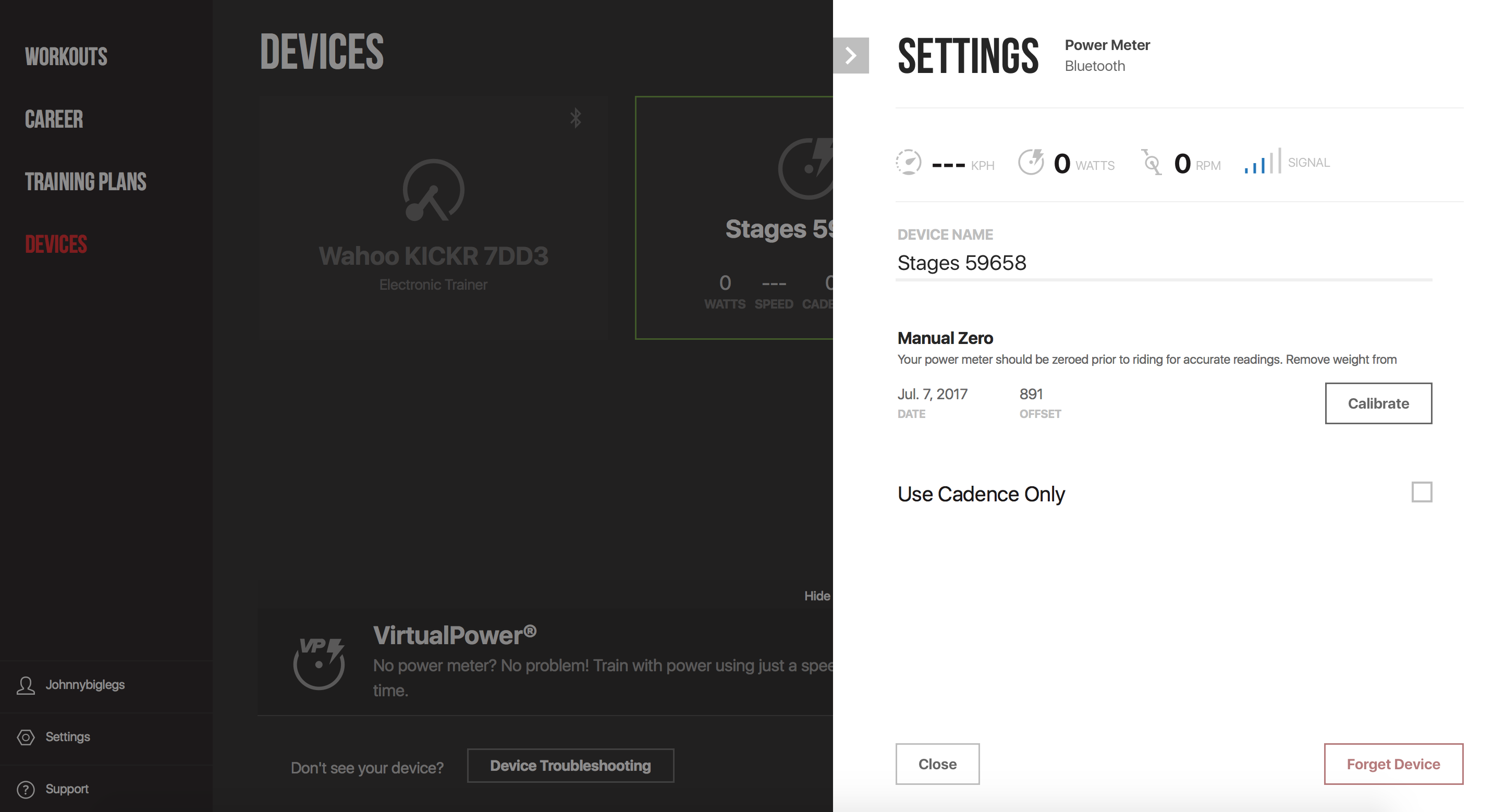

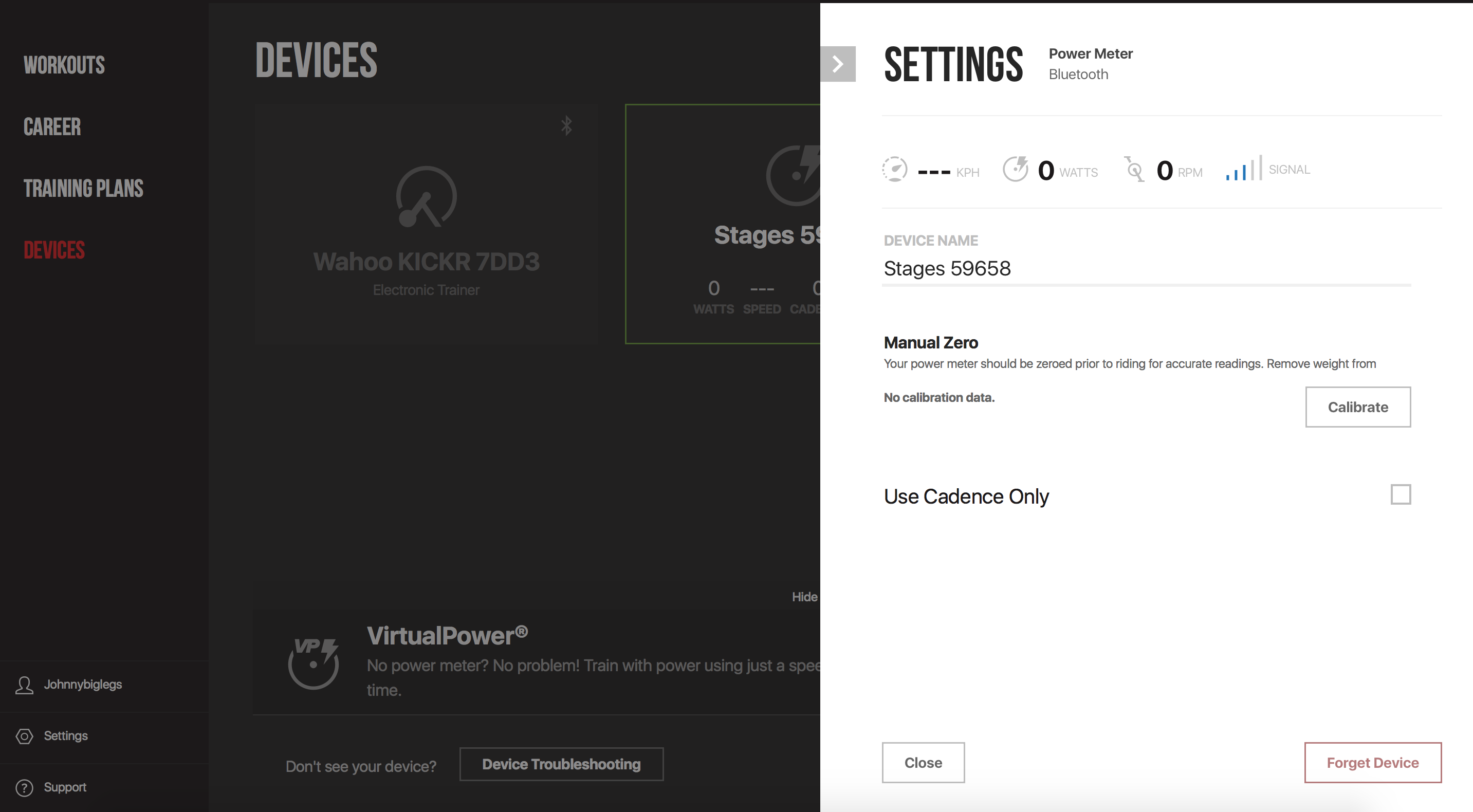

4. Manually Zero Your Stages

Manually zeroing your power meter is akin to zeroing a scale before measuring your weight. Hit the Manual Zero button to complete this process. Although this step isn't required to start a workout, we recommend zeroing your Stages before each ride. Make sure the crank arm is positioned vertically at 6:00 and 12:00.


How to Pair Your Stages with TrainerRoad (Legacy)

1. Open the TrainerRoad application and go to the Devices tab.

2. Click the "Pair" button that corresponds with Power Meter, and wait for your Stages to pair with TrainerRoad

"Searching for device" will be displayed until TrainerRoad finds your power meter.

3. Your Stages is Now Paired

The pairing box will turn green once your Stages is paired with TrainerRoad. You'll be able to view power, cadence, the Stages' signal strength, hours since your battery has been replaced, and a button to manually zero your power meter.

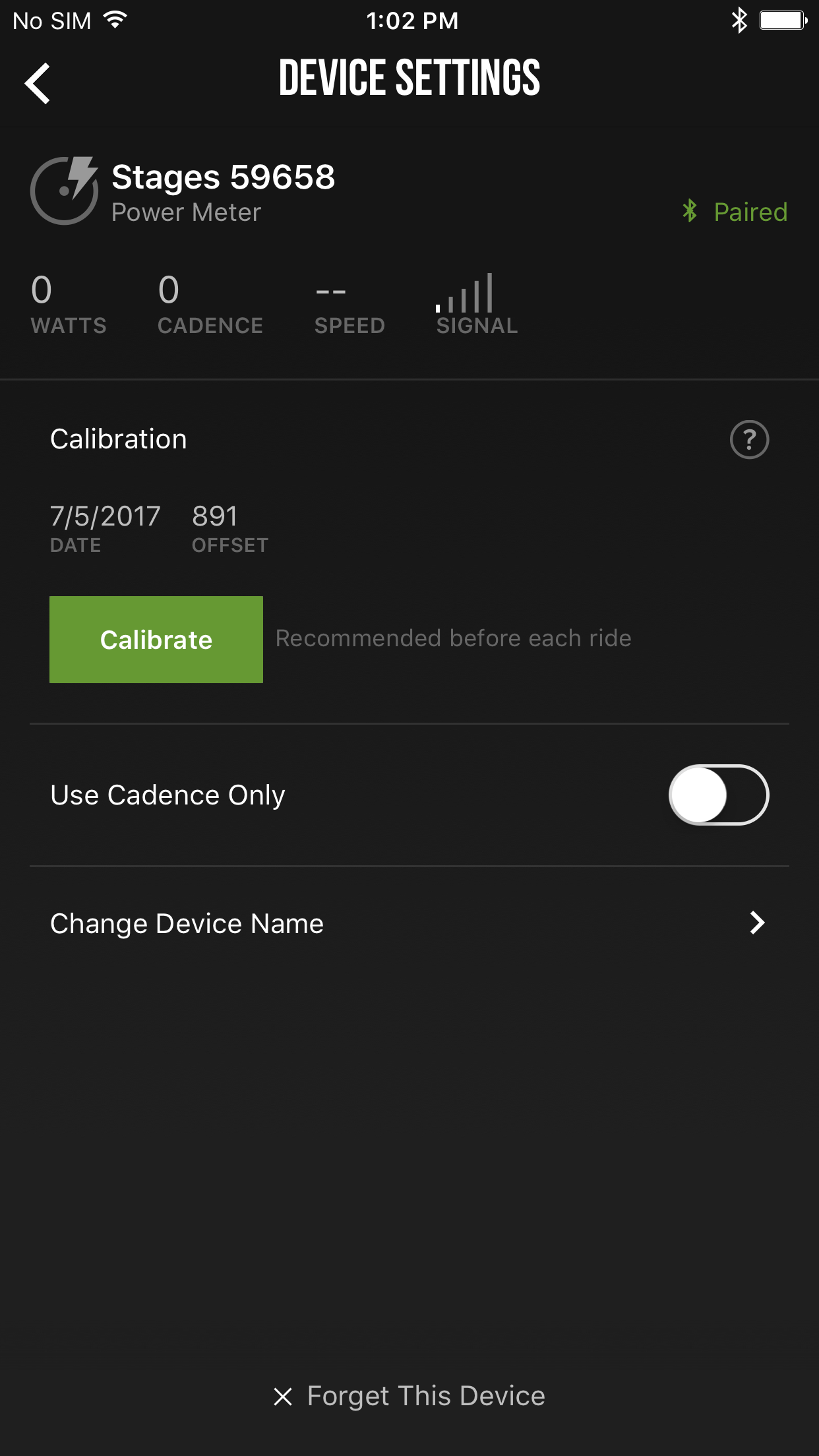

4. Manually Zero Your Stages

Manually zeroing your power meter is akin to zeroing a scale before measuring your weight. Hit the Manual Zero button to complete this process. Although this step isn't required to start a workout, we recommend zeroing your Stages before each ride.
